Aluminum Casting Tooling Services & Solutions

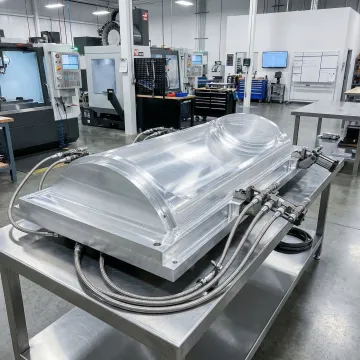

Aluminum casting tooling refers to production molds made from cast aluminum, used in thermoforming to shape heated plastic sheets into precise, repeatable parts. The aluminum mold is created from an approved master pattern and provides the dimensional accuracy and durability needed for high-volume production runs. Compared to wood or polyurethane tooling, aluminum molds withstand significantly more cycles and maintain tighter tolerances over time.

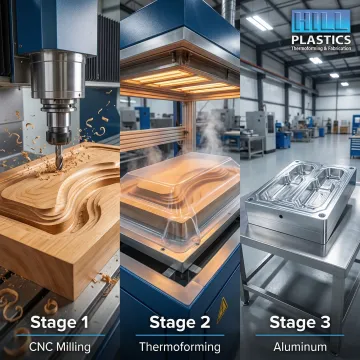

Hill Plastics begins by CNC-milling a master pattern from wood to your print specifications. This pattern is used to form prototypes for your review. After you approve the prototype's fit and function — and any necessary design changes are made to the pattern — the approved master pattern enters the aluminum casting process to create your final production mold, ready for long-run thermoforming.

A wood master pattern is significantly less expensive than aluminum tooling and allows design changes to be made quickly and at low cost. This step lets you physically evaluate the part's fit, function, and appearance before committing to the aluminum casting investment. It dramatically reduces the risk of costly tooling revisions after the production mold is cast, and master patterns can typically be produced in just a few weeks.

Lead times vary depending on part complexity, but Hill Plastics works to move efficiently through each phase. A wood master pattern can typically be produced within a few weeks of receiving approved drawings. Prototype forming follows shortly after the pattern is mounted on a mold base. After prototype approval, the aluminum casting process proceeds — your Hill Plastics engineering contact can provide a project-specific timeline based on your part's requirements.

Hill Plastics' aluminum casting molds support thermoforming with a wide range of materials including ABS, High-Temperature ABS, HDPE, PETG, UV Resistant ASA/ABS, Polystyrene, KYDEX, and decorative foil laminated materials. Material selection depends on your application's impact resistance, temperature exposure, chemical resistance, UV stability, and cosmetic requirements — the Hill Plastics engineering team helps identify the best fit for your project.

Hill Plastics serves a broad range of industries including aerospace and aviation, telecommunications, medical devices and healthcare, industrial equipment and OEM manufacturing, defense and military, marine, electronics, oil and gas, and point-of-purchase retail displays. Their aluminum casting tooling solutions are designed to meet the demanding specifications of engineers and purchasing agents in each of these markets.

Yes. Hill Plastics provides a full tooling spectrum — from low-cost wood and polyurethane prototype tooling through aluminum casting production molds — all under one roof at their 20,000+ sq. ft. Lewisville, Texas facility. Once production molds are completed, the company can manufacture parts at high volume using its rotary thermoforming machine, which runs at 2.5 times the speed of standard single-station equipment.
