Custom Thermoforming Mold Making and Tooling Services

Thermoforming tooling costs vary based on part size, complexity, and tooling material. Prototype tooling using CNC-machined wood or polyurethane typically ranges from a few hundred to a few thousand dollars, making it highly cost-effective for design validation. Production aluminum molds, created through a casting process using the approved master pattern, generally cost between $3,000 and $15,000 depending on mold dimensions and detail requirements. Compared to injection molding tooling, thermoforming molds offer significantly lower upfront costs, faster turnaround times, and the flexibility to make design adjustments during prototyping. Our team provides detailed quotes based on your specific part geometry and production volume requirements.

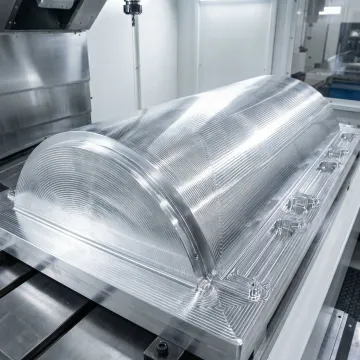

Thermoform tooling refers to the molds and fixtures used in the thermoforming process to shape heated plastic sheets into finished parts. The tooling includes a master pattern (typically CNC-machined from wood, polyurethane, or Renshape board) that defines the part's exact geometry, draft angles, and surface detail. For prototyping, the pattern itself can serve as the forming mold. For production, the pattern is used to create durable aluminum casting molds capable of handling high-volume runs. Additional tooling includes trim fixtures, drill jigs, and threaded insert fixtures used in secondary operations to finish parts to precise specifications. Properly engineered tooling is critical for achieving dimensional accuracy, surface quality, and production repeatability.

Tooling turnaround time depends on part complexity and tooling type. CNC-machined wood or polyurethane prototype tooling can often be completed in 2-4 weeks from approved CAD data. Once the master pattern is mounted on a mold base, prototype parts can be formed within days for your evaluation. After prototype approval, production aluminum molds typically require an additional 4-6 weeks for casting, finishing, and validation. Our in-house CNC machining and SolidWorks design capabilities allow us to expedite tooling development compared to outsourcing, helping you get to market faster while maintaining precision and quality throughout the process.

Hill Plastics uses several tooling materials optimized for different production stages and volumes. For rapid prototyping and low-volume pre-production runs, we machine molds from Perfect Plank wood, mahogany, polyurethane, or Renshape tooling board—all cost-effective materials that allow quick design iterations. For high-volume production, we create aluminum casting molds using the approved master pattern. Aluminum tooling offers excellent durability, heat transfer, and dimensional stability across thousands of forming cycles. The choice of tooling material depends on your project timeline, production quantity, and budget. Our engineering team will recommend the optimal tooling strategy based on your specific part requirements and manufacturing goals.

Yes, one of the key advantages of thermoforming tooling is the flexibility to make design adjustments during the prototype phase. When using wood or polyurethane master patterns, modifications can be easily incorporated through additional CNC machining or hand finishing. This allows you to refine part geometry, adjust wall thickness, modify draft angles, or add detail features based on real-world fit and function testing. Once you approve the final prototype design, we use that perfected master pattern to create durable aluminum production molds. This iterative approach ensures your production tooling is optimized before committing to high-volume manufacturing, reducing risk and ensuring first-article success.

We engineer thermoforming tooling for a diverse range of industries with demanding precision and performance requirements. Key sectors include aerospace and aviation (radomes, interior components, enclosures), telecommunications (antenna housings, equipment enclosures), medical devices and healthcare (equipment housings, trays, protective covers), industrial equipment and OEM manufacturing (machine guards, custom enclosures, material handling trays), defense and military applications, marine components, electronics and electrical equipment housings, oil and gas equipment, and point-of-purchase retail displays. Our 45 years of cross-industry experience means we understand the unique material requirements, regulatory standards, and quality expectations for each sector, delivering tooling engineered for your specific application.

Absolutely. Our sales and engineering team, led by Brad Hill and Cody Hill, provides comprehensive design assistance throughout the tooling development process. We help optimize part geometry for thermoformability, recommend proper draft angles and wall thickness, suggest material selections based on your application requirements (impact resistance, UV stability, chemical compatibility, temperature range), and advise on cost-effective tooling strategies. Using SolidWorks CAD software, we can review your existing designs or collaborate on new product development to ensure manufacturability and performance. Our goal is to deliver turnkey solutions from initial concept through finished production parts, leveraging our expertise to avoid common pitfalls and accelerate your time to market.

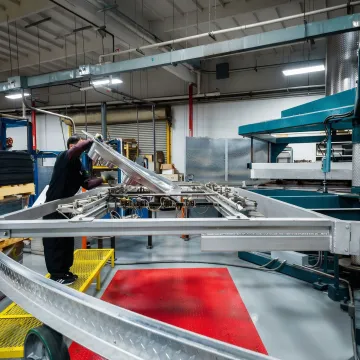

Prototype tooling is designed for rapid, cost-effective validation of part design, fit, and function. We typically use CNC-machined wood or polyurethane patterns that can be produced quickly and easily modified based on testing feedback. Prototype molds are ideal for forming initial samples, conducting design reviews, and evaluating material performance before committing to production. Production tooling consists of durable aluminum casting molds engineered for high-volume manufacturing. Created from the approved master pattern, aluminum molds provide superior heat transfer, dimensional stability, and tool life across thousands of forming cycles. The two-stage approach—prototype validation followed by production tooling—minimizes risk, reduces overall project costs, and ensures your final molds are optimized for quality and efficiency.
